Boiler Cold Drawn Stainless Steel Seamless Tube ASTM A269 TP316L

wenzhoushi chengyu steel co.,ltd
Contact Now

Boiler Cold Drawn Stainless Steel Seamless Tube ASTM A269 TP316L

  • 1
  • 2

Brand Name : CHENGYU

Model Number : 19*1.5

Certification : ISO

Place of Origin : CHINA

MOQ : 50KG

Price : 2.0-8.0USD/KG

Payment Terms : Western Union

Supply Ability : 10000TONS

Delivery Time : 15-30DAYS

Packaging Details : WOVEN BAGS,PLYWOOD PACKAGE,IRON CASE

Steel grade : 300 Series

Application : Construction,boiler,oil and gas,electric

Standard : ASTM,AISI,GB,DIN,JIS

Product name : Stainless Steel Pipe,304 304L 316 316L 321 310S Stainless Steel Welded / Seamless Tube,Factory Direct Sales Stainless Steel Pipe For Electric Heating Element,Seamless stainless Steel pipe/tube

Grade : 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect,304L 316 316L 310s 321 321H 347 347H

Contact Now

Quick Details

Standard:JIS,AISI,ASTM,GB,DIN,EN,GOST

Type:Seamless

Grade:201/304/304L/304LN/304H/316Ti/316L/316H/321/321H/904L/310S/347 etc

Size:OD6mm-1024mm WT0.5mm-68mm LENGTH 50mM-12000mm

Application:Petroleum,Chemical Engineering,Fluid Machinery,Irrigation Works,Electric Power,Environmental,Etc

Surface Finish:Brush polish,Hairline,160grit,Mirror,Bright,Etc

Technique:Cold rolling,Cold drawing

Test: Hardness Test,Hydrostatic Test,Ultrasonic Test,Eddy Current Test,Dimensional Checking,Chemical Analysis Etc

Inspection:100%

Price Term:FOB,CFR,CIF or as negotiation

ASTM Chemical Composition (%,max)
Grade C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤ Mo Others
304 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00
304H 0.04-0.1 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00
304L 0.035 0.75 2 0.04 0.03 8.00-13.00 18.00-20.00
304N 0.08 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00 N:0.1-0.16
304LN 0.035 0.75 2 0.04 0.03 8.00-11.00 18.00-20.00 N:0.1-0.16
309 0.15 0.75 2 0.04 0.03 12.00-15.00 22.00-24.00
310 0.15 0.75 2 0.04 0.03 19.00-22.00 24.00-26.00
316 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00
316H 0.04-0.1 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00
316L 0.035 0.75 2 0.04 0.03 10.00-15.00 16.00-18.00 2.00-3.00
316N 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00 N:0.1-0.16
316LN 0.035 0.75 2 0.04 0.03 10.00-15.00 16.00-18.00 2.00-3.00 N:0.1-0.16
317 0.08 0.75 2 0.04 0.03 11.00-14.00 18.00-20.00 3.00-4.00
321 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Ti:5xC%-0.70B
321H 0.04-0.1 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Ti:4xC%-0.6
347 0.08 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Nb+Ta:10xC%-1.00
347H 0.04-0.1 0.75 2 0.04 0.03 9.00-13.00 17.00-20.00 Nb+Ta:8xC%-1.00
329 0.089 0.75 2 0.04 0.03 2.50-5.00 23.00-28.00 1.00-2.00
316Ti 0.08 0.75 2 0.04 0.03 11.00-14.00 16.00-18.00 2.00-3.00 Ti:5xC%-0.75
S31803 0.03 1.00 2 0.03 0.02 4.5-6.5 21.00-23.00 2.50-3.50 N:0.08-0.3

AMERICAN STANDARD CONTRAST FORM
Nominal diameter in inches External diameter in millimeters ANSI B36.19
5s 10s Sched 40s Sched 80s
mm kg/m mm kg/m mm kg/m mm kg/m
1/8" 10.29 1.24 0.281 1.73 0.371 2.41 0.467
1/4" 13.72 1.65 0.499 2.24 0.644 3.02 0.809
3/8" 17.15 1.65 0.64 2.31 0.858 3.2 1.118
1/2" 21.34 1.65 0.814 2.11 1.016 2.77 1.26 3.73 1.62
3/4" 26.67 1.65 1.034 2.11 1.298 2.87 1.68 3.91 2.19
1" 33.4 1.65 1.312 2.77 2.125 3.38 2.5 4.55 3.23
11/4" 42.16 1.65 1.674 2.77 2.732 3.56 3.38 4.85 4.46
11/2" 48.26 1.65 1.926 2.77 3.155 3.68 4.05 5.08 5.4
2" 60.33 1.65 2.424 2.77 3.992 3.91 5.43 5.54 7.47
21/2" 73.03 2.11 3.747 3.05 5.345 5.16 8.62 7.01 11.4
3" 88.9 2.11 4.585 3.05 6.557 5.49 11.28 7.62 15.25
31/2" 101.6 2.11 5.272 3.05 7.526 5.74 13.56 8.18 18.62
4" 114.3 2.11 5.945 3.05 8.496 6.02 16.06 8.56 22.29
5" 141.3 2.77 9.639 3.4 11.74 6.55 21.76 9.52 30.92
6" 168.3 2.77 11.514 3.4 14.037 7.11 28.23 10.97 42.52
8" 219.08 2.77 15.049 3.76 20.334 8.18 42.49 12.7 64.57
10" 273.05 3.4 23.028 4.19 28.29 9.27 60.24 12.7 81.46
12" 323.85 3.96 31.806 4.57 36.633 9.52 73.76 12.7 97.36

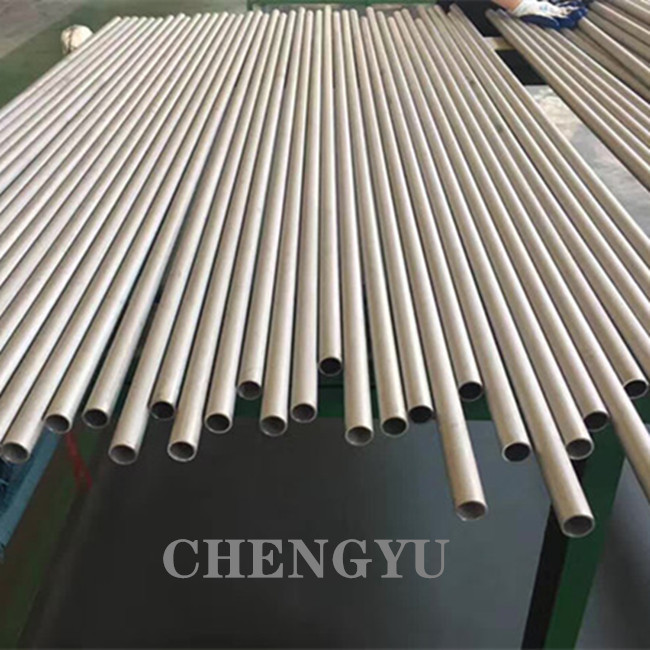

Boiler Cold Drawn Stainless Steel Seamless Tube ASTM A269 TP316L

Boiler Cold Drawn Stainless Steel Seamless Tube ASTM A269 TP316L

Boiler Cold Drawn Stainless Steel Seamless Tube ASTM A269 TP316L

Boiler Cold Drawn Stainless Steel Seamless Tube ASTM A269 TP316L

Boiler Cold Drawn Stainless Steel Seamless Tube ASTM A269 TP316L

RFQ:

1. Are you a trading company or a manufacturer?

Manufacturer and trading.

2. What are your main products?
All kinds of elbows, tees, caps, flanges, and steel pipes, etc with different stainless steel,nickel alloy materials.

3. Do you provide free samples?
We'd like to provide samples for your confirm, but we don't pay the cost of freight.


4. Why should I choose you?
* Contact us with your detailed inquiry, you will be replied within 6 hours.

* You are promised to obtain the best quality, price, and service.

* Wide excellent experiences with after-sale service.

* Every process will be checked by responsible QC which ensures every product's quality.

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

20 feet container load 25tons pipes whose length is under 5.8m

40 feet container load 28tons pipes whose length is under 11.8m
